What size excavator is needed for the BL3/EX?

The BL3/EX is compatible with excavators from 12 to 20 tons, commonly used in commercial land clearing and forestry applications.

How big of a tree can the BL3/EX mulch?

It can mulch trees and brush up to 8 inches in diameter depending on wood type and hydraulic specs.

What are the main use cases for the BL3/EX?

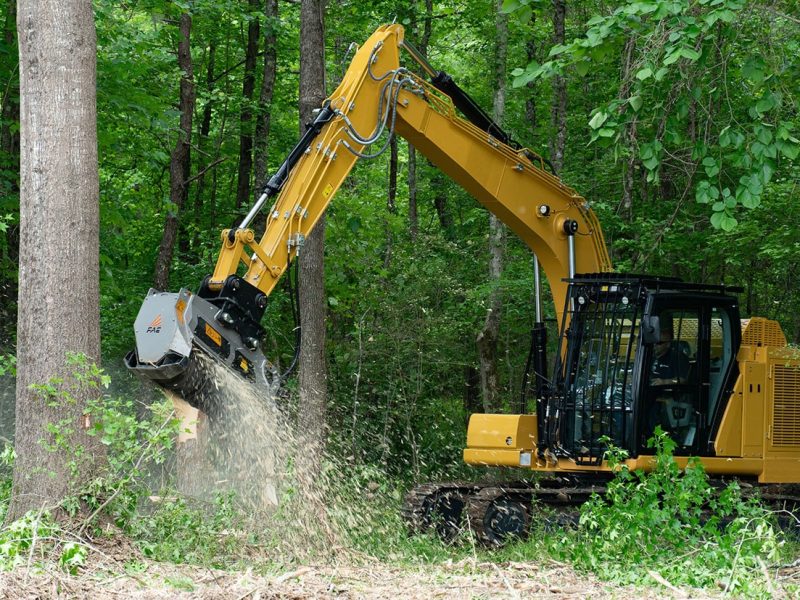

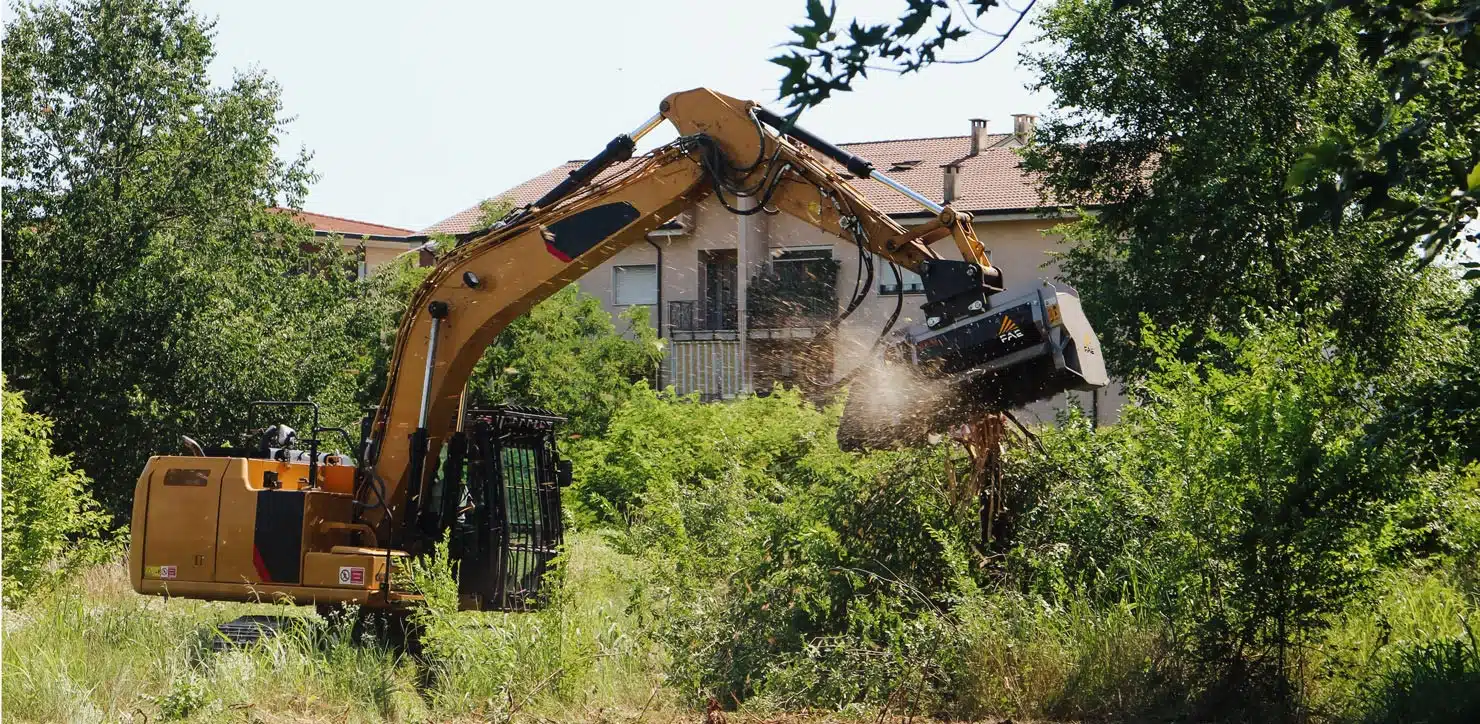

It’s commonly used for land and lot clearing, firebreak maintenance, utility line vegetation control, and trail development.

Where is the BL3/EX available in Canada?

The BL3/EX is distributed in Canada by G.B. Équipements, official FAE distributor. Visit their website to request a quote or more info.

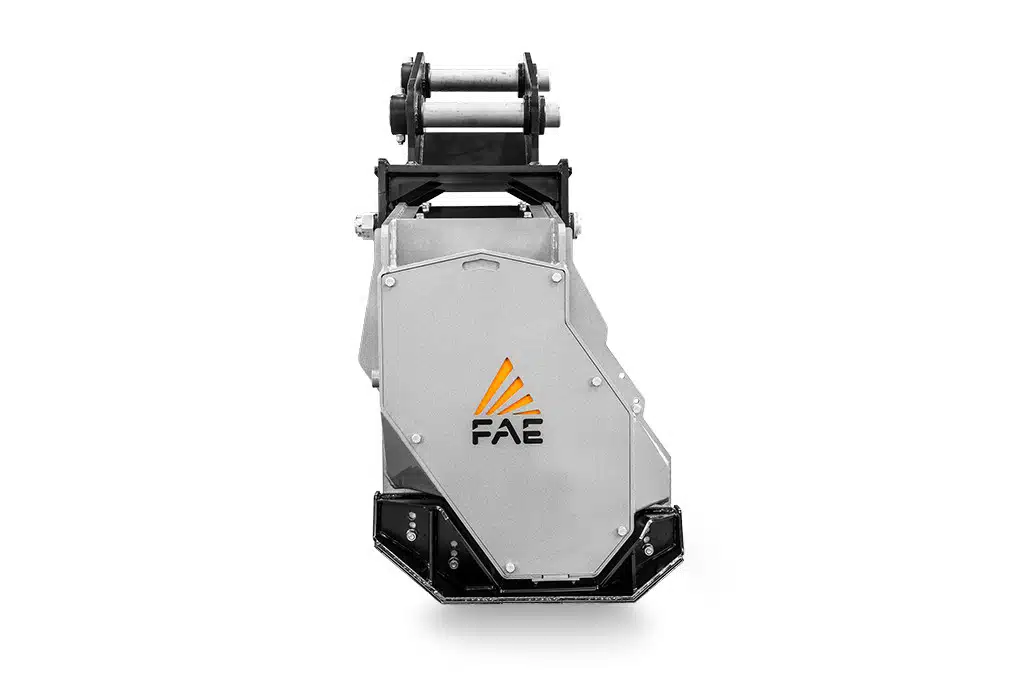

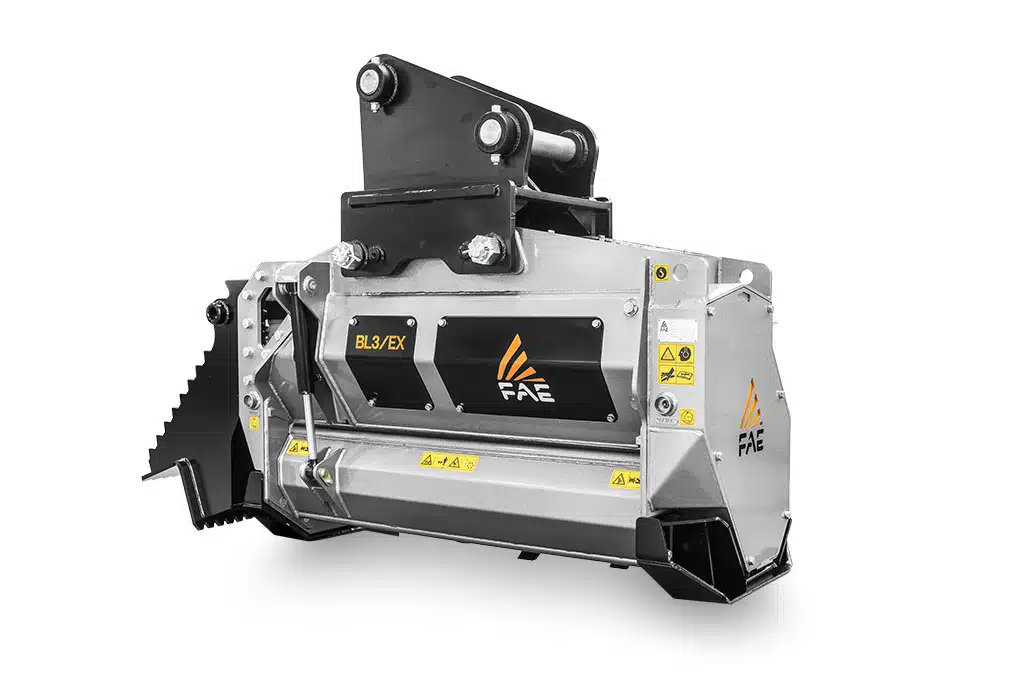

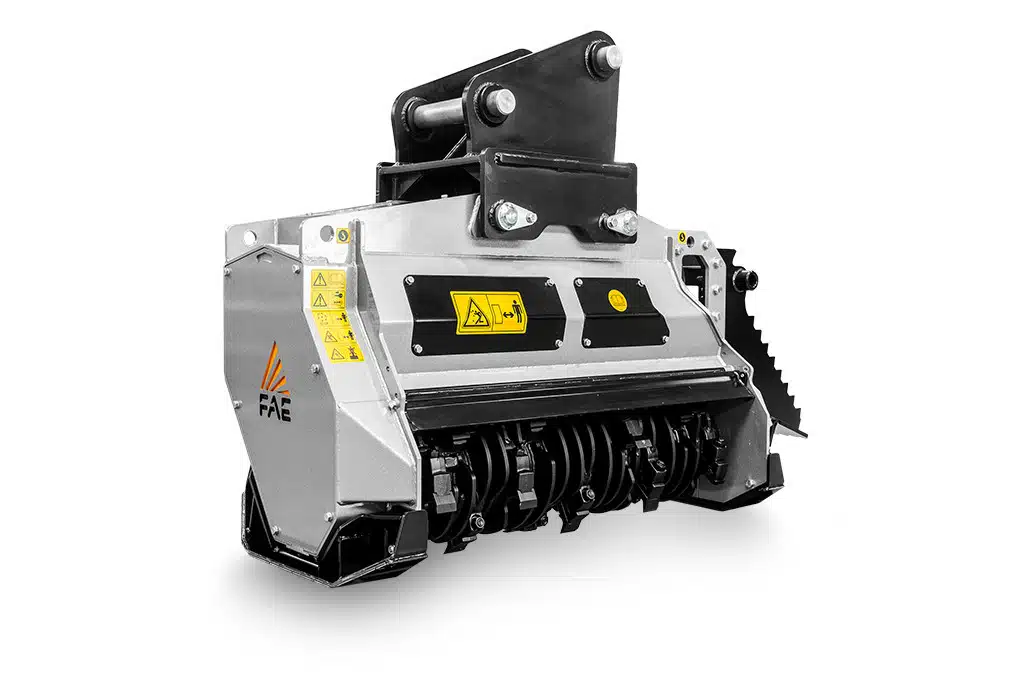

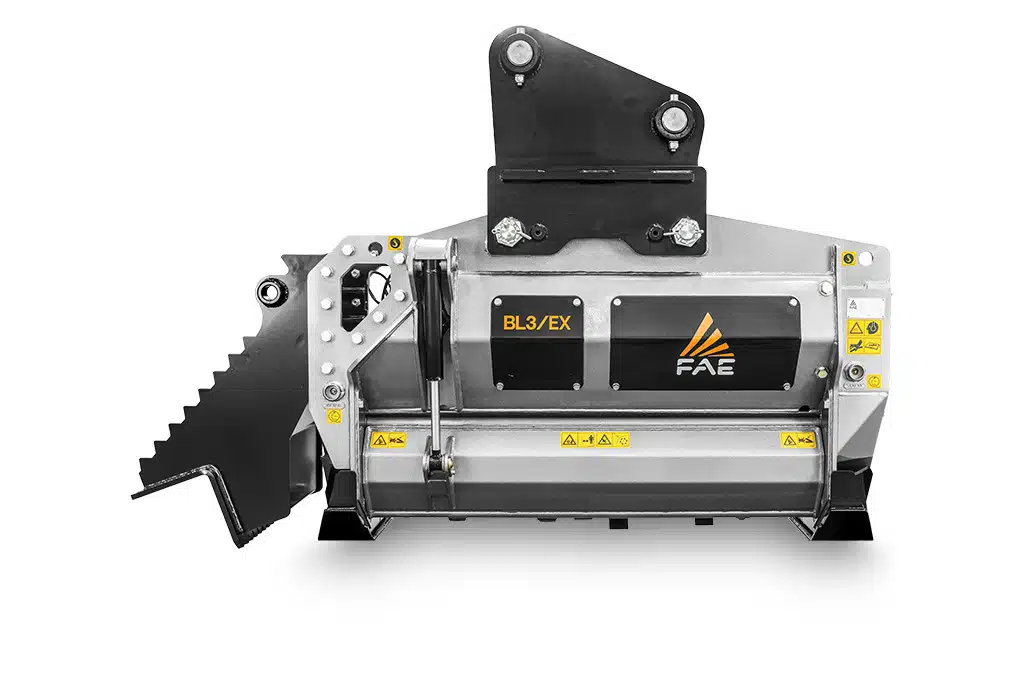

BL3/EX

From 14 to 20 T

Mulchers for excavators

Excavator mulcher with Bite Limiter rotor, designed for demanding tasks.

Play

Mulchers for excavators

The BL3/EX is designed for excavators ranging from 14 to 20 tons, providing a robust solution for shredding trunks up to 8 inches in diameter.

Key Features:

Available working widths: Choose between 53 inches and 63 inches to adapt to the most demanding project requirements.
Bite Limiter Technology: Steel profiles limit the cutting depth of the tools, reducing power demand and ensuring exceptional working speed with consistent performance.
Forged steel BL blades: Heat-treated for durability, they can be sharpened, reducing maintenance costs and extending their lifespan.
VT (Variable Torque) Motor: With a 110/60 cc displacement, this motor enhances torque when needed and reduces the risk of rotor stalling, significantly boosting overall productivity.

Available versions:

BL3/EX/VT: Variable torque motor for optimal performance.

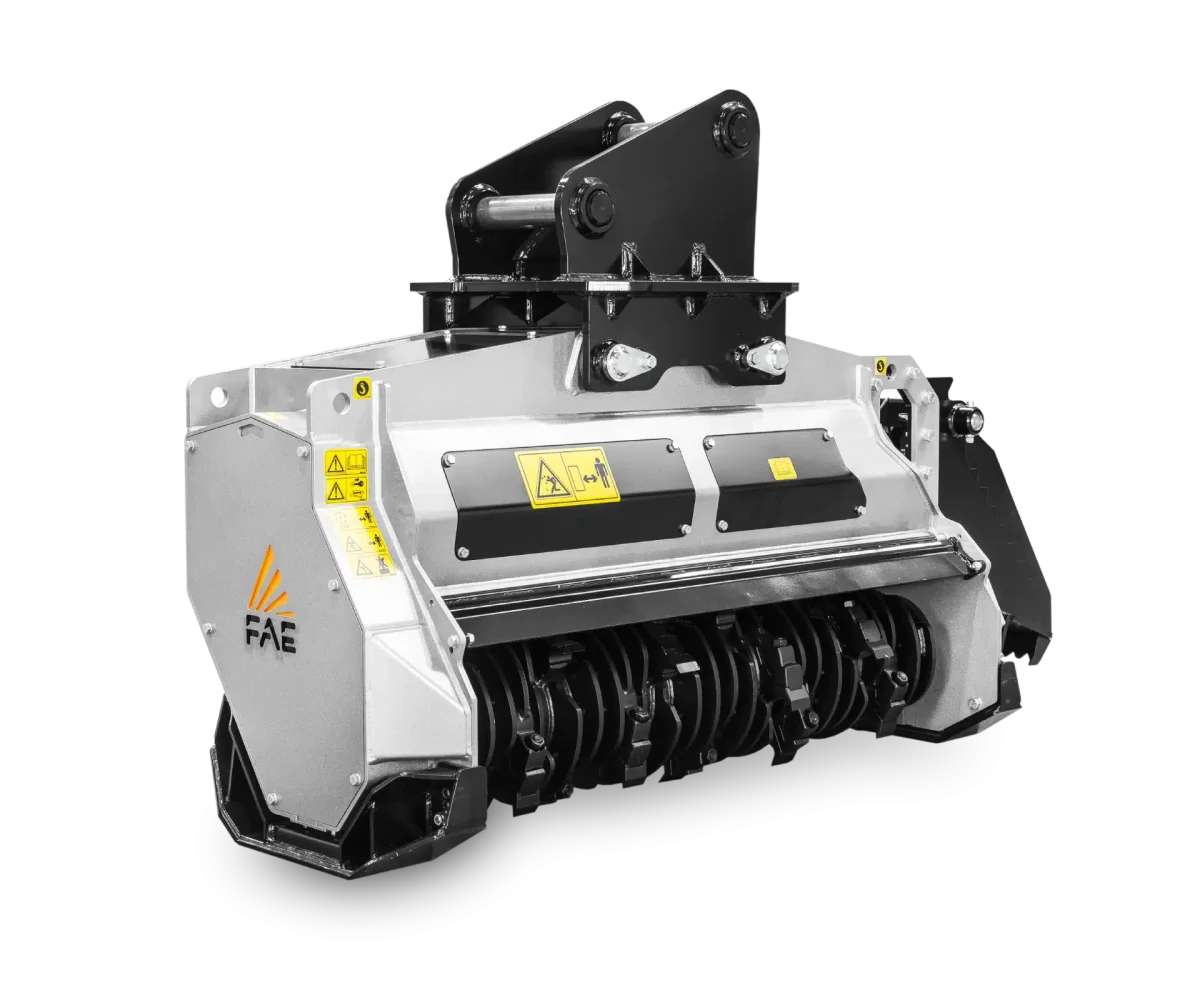

BL3/EX/SONIC: Integrates FAE’s exclusive Sonic technology, optimizing efficiency and automatic adjustments.

The BL3/EX is a high-performance forestry mulcher, perfectly suited for professionals seeking ruggedness, efficiency, and adaptability for intensive forestry work.

NEED MORE INFORMATION ?

Excavator weight

From 14 to 20 tons.

Max. Mulching Diameter

8''

Main features

Bite Limiter rotor

Exceptional speeds and performance with lower power demand

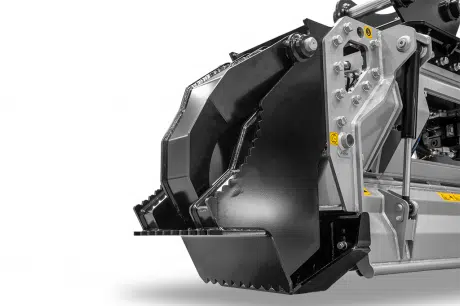

Spike Pro counter-blades

For a superior finish of the processed material.

Sonic System (BL3/EX/SONIC).

It is an automatic hydraulic transmission control and management system that ensures maximum performance in all conditions.

Parts and accessories

Fully enclosed, dust-resistant frame
Engine integrated into the chassis
Fittings for hydraulic connections.
Bolt-on interchangeable Spike PRO counter-blades
Adjustable support skids
12V bypass valve.
Flow Control valve with integrated safety and anti-cavitation valves.
Sonic System (BL3/EX/SONIC).
Toothed belt drive transmission.
110 cm³ piston hydraulic motor with Sonic technology (BL3/EX/SONIC).
110 cm³ piston hydraulic motor with Variable Torque (VT) technology (BL3/EX/VT).
Interchangeable rotor shafts made of forged steel.
Bite Limiter rotor with BL blade.
Control unit for bypass valve.
Deflector
Hydraulically adjustable front door.

Equipment
on request

Possibility to choose between different types of tools. — Option to choose between different types of tools.

Mounting bracket kit with customizable pins.

Hydraulic front hood with auxiliary line control for excavator.

Customized Hydraulic Motor Adjustment (BL1:EX:VT) — Customized hydraulic motor adjustment
